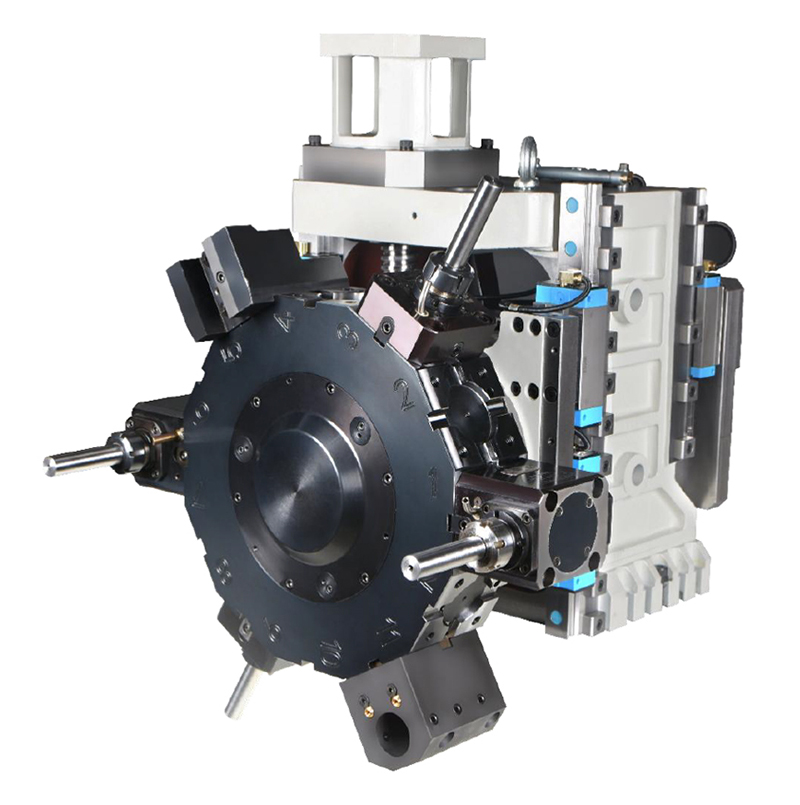

The Y-axis Power NC Turret

Inquire Now Next

Product Details

The Y-axis turret is constructed flat Y-axis servomotor drives power cutter-head move along on Y-axis by ball screw, suitable for drilling, miling, turning, boreing, thread cutting,etc.

1.The turret adopts the box built-in, front and rear four-line rail frame structure layout, small volume, strong rigidity.

2. Y-axis servo motor drives precision ball screw to drive the power turret to move along Y-axis, with high positioning accuracy.

3. Turret adopts servo motor indexing, two-way near tool change, fast tool change speed and high efficiency.

4. Can be forward/backward cutting, suitable for positive turning layout machine tools.

5. Configuration of power motor can realize the processing of complex parts such as drilling, milling, turning, boring and tapping.

6. Three piece precision end gear disc for precise positioning, high positioning accuracy and repeat positioning accuracy.

7.Hydraulic locking of the tool plate, high rigidity and good reliability.

Product Size

Product Parameters

Model	BMT	A	B	C	D	E	F	G	H	K	M	N	O	P	R	S	T	U	V1	V2	W
Y12-BMT40	40	127	35	70	137.5	75	368.5	213	480	35	Φ17	25	7.5	123.5	38	262	127	8- 12	111	234	240 (Standard configuration）	300 ( 15 workstations)
Y16-BMT45	45	170	50	70	153.5	90	396	258.5	580	32	Φ17	30	7.5	141	60	300	148	10- 12	132	293	290
Y16-BMT55	55			70	151.5	100	394	261.5													340

Model	BMT	A	B	C	D	E	F	G	H	K	L	M	N	O	P	R	S	T	U	V1	V2	W
Y12H-BMT40	40	127	35	70	143	75	374	218.5	419	35	370	Φ17	25	7.5	123.5	38	301	127	8- 12	111	234	240 (Standard configuration)	300 (15 workstations)
Y16H-BMT45	45	170	50	61	153.5	90	396	258.5	519	32	430	Φ17	30	7.5	141	60	360	148	10- 12	132	293	290
Y16H-BMT55	55			59	151.5	100	394	261.5														340

MAIN SPECIFICATIONS

Items

Unit

Y12

Y16

Number of work stations

12/ 15

Allowable tangential force for clamping time

KNm

0.75

1.7

Positioning indexing accuracy

sec.

±4"

Repeatability

sec.

±1.6"

30° turning and braking time

0. 1

0. 12

Time per step excluding acceleration and braking

0.06

0.07

Hydraulic tool locking/unlocking time

0. 11

0. 12

Allowable tool change frequency

次/Min

Allowable unbalance moment during machining

Operating pressure ±10%

Mpa

Coolant pressure value

Mpa

2.5

Weight (without tool)

150

250

Tool to motor drive gear ratio

1:1

Carrying tool holder specification

BMT40

BMT45/BMT55

Tool limit speed

rpm

6000

5000

Y-axis reduction ratio

1:1.5

1:2

Max. permissible feed speed

m/min

Allowable Y-axis feed stroke

±35

±50

Positioning accuracy

μm
